3pt EconoDrag Harrows

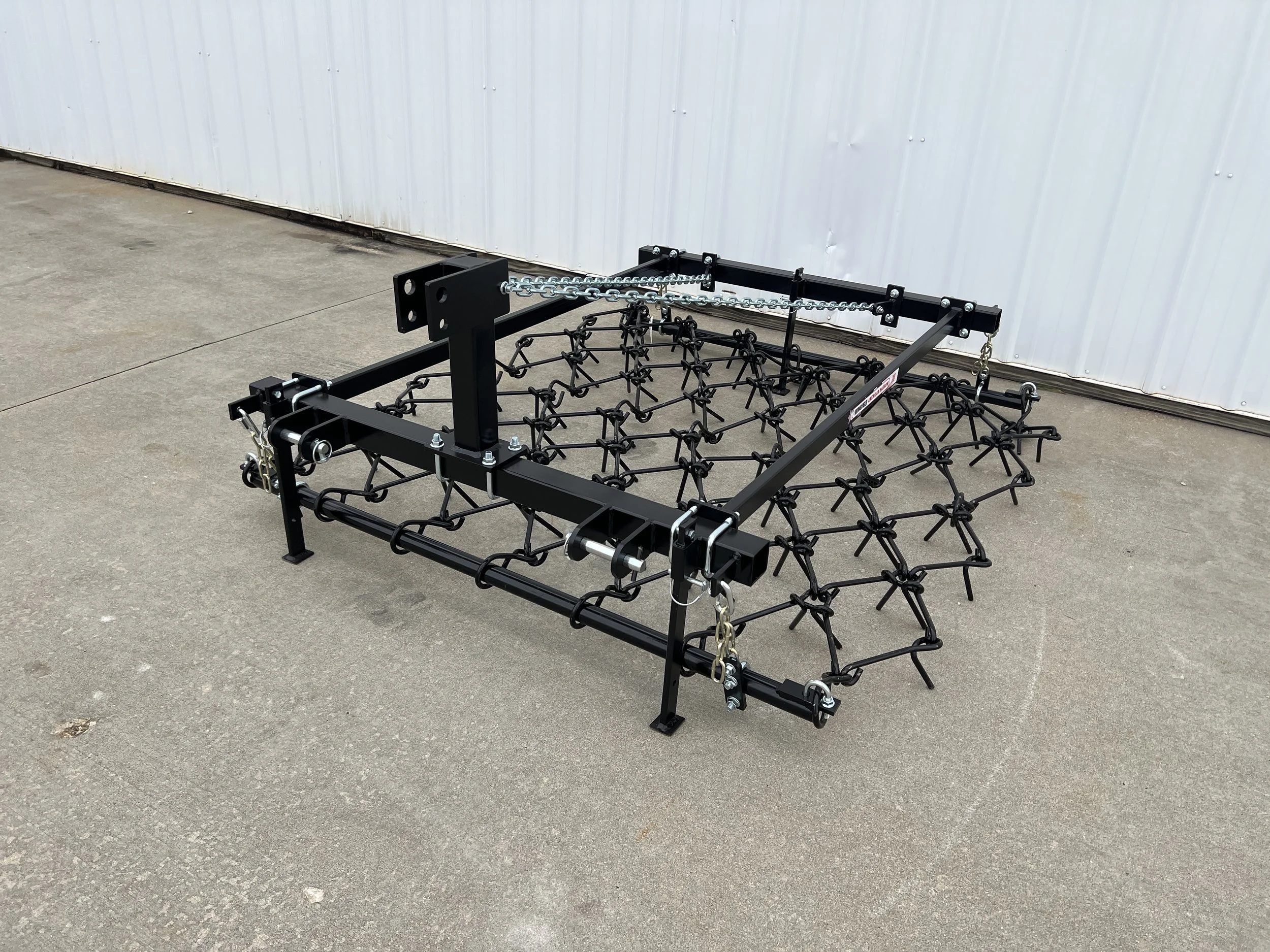

The Wingfield 3-point EconoDrag is available in 4' 9" - 7' 2" widths and is 5' in length. It utilizes a fully-encompassing, box-tube frame to offer total control over the harrow. With the three-point frame, you can back into corners, shake out loose material, control the number/pressure of the tines on the ground, and easily transport the harrow. Plus, you can quickly change the harrow aggressiveness with no tools. The three point harrow is also Cat #1 quick-hitch enabled as standard equipment.

This unit can perform a wide variety of jobs on a small acreage: aerate and thatch, maintain a gravel driveway, reseed a yard, break up manure in a pasture, groom a riding arena, prepare a seedbed for a garden, incorporate fertilizer/chemicals, level off behind heavy-equipment, and much more! This versatility makes it one of the handiest pieces of equipment you can own.

Also, if your tractor is in use or out of action, the optional chain and clevis allows the chain harrow to be pulled by an ATV or large garden tractor.

Best for…

  • Sub-Compact, Compact Tractors, and Smaller Tractors

  • Food plots

  • Bridle paths

  • Gravel/Dirt driveways

  • Riding arenas

  • Gardens

Key Features:

  • High carbon, drawn spring steel tines

  • Computer bent tines for consistent wear

  • Rings instead of hooks to prevent binding/unhooking

  • Strong box-tube framework encompasses the entire harrow

  • Multiple tine-aggressiveness positions

  • The 3 point Lift is setup for a Cat #1 tractor and is quick-hitch enabled

  • Harrow mat aggressiveness can be quickly and easily changed with no tools required

  • Can be broken down into 3 pieces with no tools required and fit in the bed of a pickup truck

Specifications:

  • Width: 4' 9" - 7' 2"

  • Length/Depth: 5' 0"

  • Weight: 298 lbs. - 369 lbs.

  • Frame Beams: 2 1/2” x 2 1/2” x 1/8” x 54” or 72" Beam

  • Frame Verticals: 1” x 2” x 1/8” x 60” Vertical support beam

  • Hitch: Cat #1, quick-hitch ready

  • Drawbar: 49" - 76" wide - 1 1/4" Schedule 80 drawbar pipe (front and rear)

  • Optional Chain/Clevis: 6' long - 5/0 high-test chain, clevis accepts a 1/2" pin

  • Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine

  • Number of tines: 44 - 68

  • Points of contact: 88 - 136

Available Sizes:

  • 4’ 9” Wide x 5’ 0” Long - Model ED3PT49

  • 5’ 7” Wide x 5’ 0” Long - Model ED3PT57

  • 6’ 5” Wide x 5’ 0” Long - Model ED3PT65

  • 7’ 2” Wide x 5’ 0” Long - Model ED3PT72
