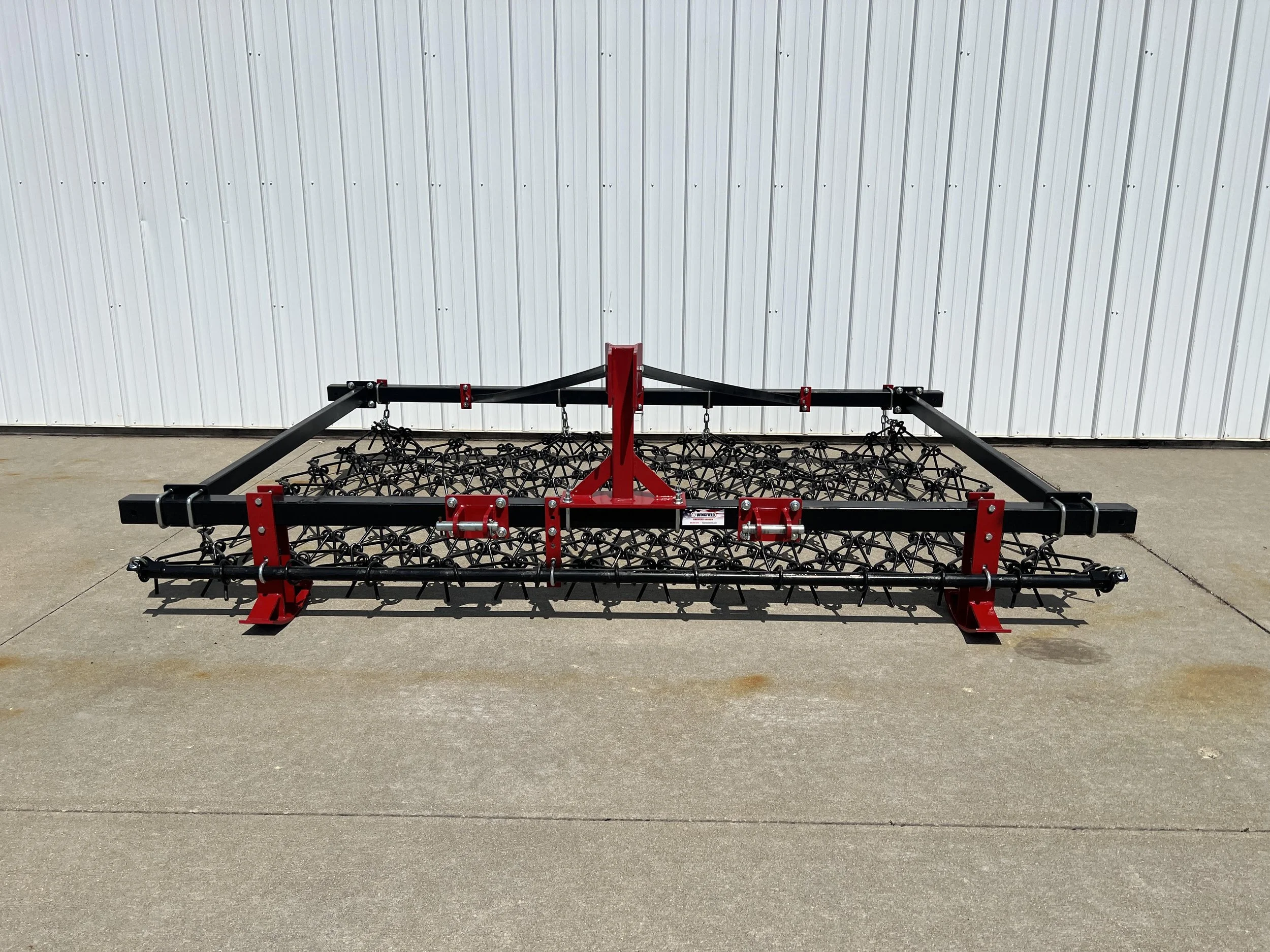

3pt Heavy-Duty Harrows
The Wingfield Heavy-Duty three-point tractor harrow utilizes a fully-encompassing, box tube frame to offer total control over the harrow. With the frame, you can back into corners, shake out loose material, control the number/pressure of the tines on the ground, and easily transport the harrow. This model is designed to expand along with your operation. First, you start with a 8', 10, or 12' three-point center frame. Then, you can add a pair of 4' 9", 5' 7" or 6' 5" hydraulic folding wings - which allows you cover twice the ground while still being able to get through gates.
This is our most popular model to drag a pasture. The Wingfield heavy-duty three-point tractor harrow is an ideal unit to break up manure, thatch, aerate, and re-seed a pasture. The harrow size is big enough to cover a good bit of ground, while still being able to get through gates and move around trees. More importantly, you can more than double its size by adding on the optional hydraulic folding wings.
The tractor harrow will contour to the ground, making sure that the entire pasture is worked up. The harrow does not pull grass out of the ground, but it will pull up thatch and aerate the soil. This allows moisture to enter the ground, rather than being soaked up by the thatch on the surface.
You can also access your untapped, free fertilizer by harrowing. By breaking up the manure, you spread it out and work it into the ground by breaking it into smaller pieces. These small pieces are more readily absorbed into the existing grass stand - providing a quick boost over a larger area than your standard, unworked cow pie. This faster recovery allows your cattle to come back to grazing that area much faster. Plus, it cuts down on your fly population by taking away their breeding ground.
The tractor harrow also does an excellent job incorporating seed into an existing stand. First, drag the ground to pull up the thatch and expose to the soil. Then, you broadcast your seed. Finally, you make another pass or two with the harrow to work the seed down in contact with the soil.
Best for…
Mid-Sized Tractors, Larger Tractors
Larger Pastures
Ground Clearing
Gravel/Dirt driveways
Seedbed Preparation
Fertilizer/Chemical Incorporation
Key Features:
High carbon, drawn spring steel tines
Computer bent tines for consistent wear
Rings instead of hooks to prevent binding/unhooking
Fully encompassing box tube framework is constructed of 3" beams
Front skids act as both stands and protect the pull pipe from objects during use
The 3-point Lift is setup for a Cat #1, #2, and #3 tractor and is quick-hitch enabled
Harrow mat comes in a single piece mat to eliminate unhooking and providing consistent ground contact
Harrow mat is our fullest length harrow (8') which allows the unit to work the ground in a single pass
Optional hydraulic folding wings (4’ 9”, 5’ 7”, and 6’ 5” widths) are available for future expansion
Specifications:
Width: 8' 0" - 25' 0"
Length/Depth: 8' 0"
Weight: 605 - 785 lbs. (center), 1,067 - 1,390 lbs. (w/ wings), 1,867 - 2,230 lbs. (cart)
Frame Beams: 3" x 3" x 3/16" front beam, 3" x 3" x 1/8" rear beam
Frame Verticals: 1 1/2" x 3" x 1/8" x 72"
Hitch: Cat #2 and Cat #3, quick-hitch ready
Drawbar: 47" - 124" wide - 1 1/4" Schedule 80 drawbar pipe
Optional Chain/Clevis: 10' - 12' long - 5/16" high-test chain, clevis accepts a 1/2" pin
Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine
Number of tines: 114 - 534
Points of contact: 228 - 1,068
Available Sizes:
8’ 0” Wide x 5’ 0” Long - Model S3PT80
8’ 9” Wide x 5’ 0” Long - Model S3PT89
9’ 6” Wide x 5’ 0” Long - Model S3PT96
10’ 4” Wide x 5’ 0” Long - Model S3PT104
