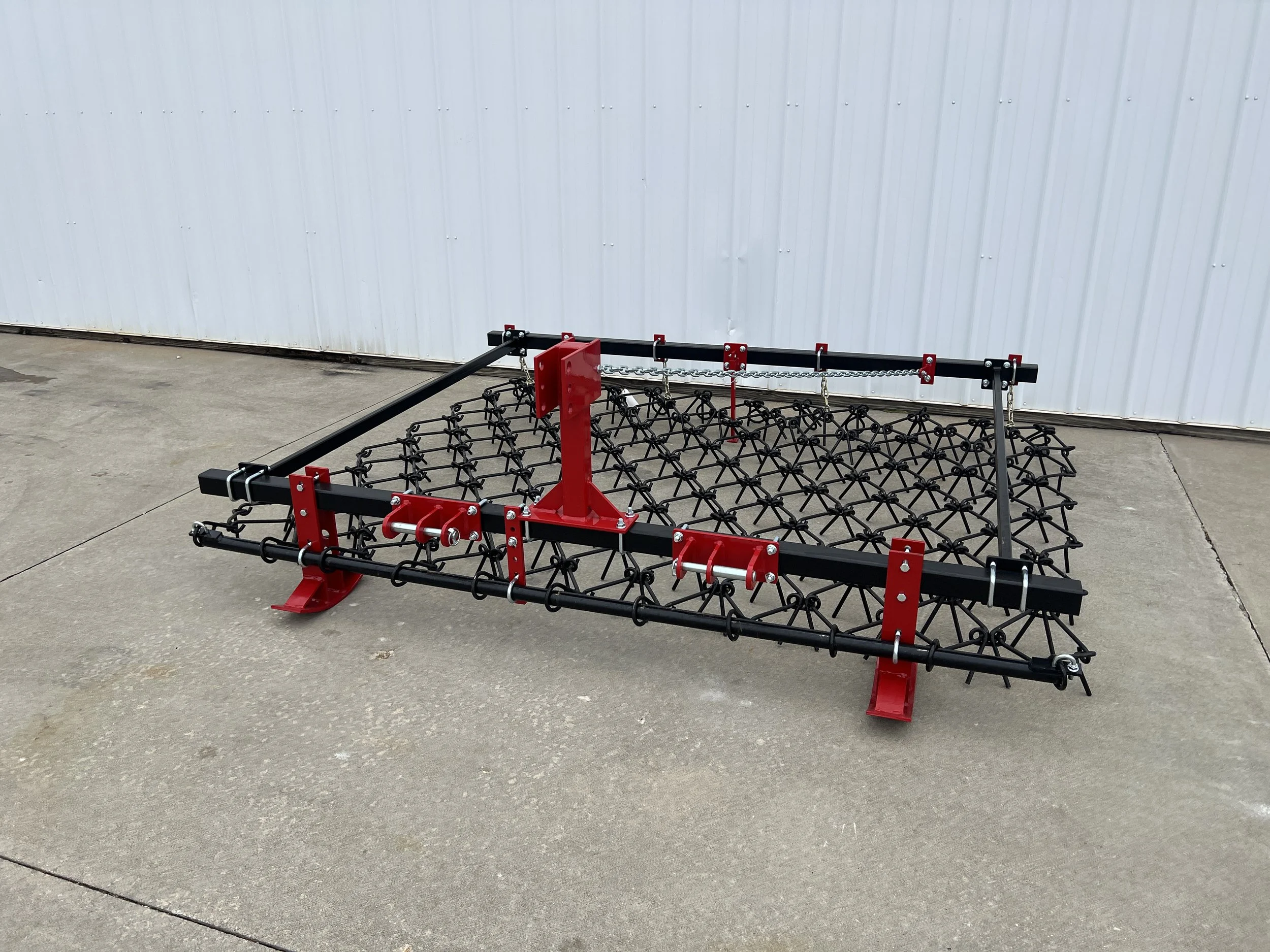

3pt MaxiLift Harrows

The Wingfield 3-point MaxiLift chain harrow utilizes a fully-encompassing, box tube frame to offer total control over the harrow. With the frame, you can back into corners, shake out loose material, control the number/pressure of the tines on the ground, and easily transport the harrow. Use the 3-point MaxiLift chain harrow to maintain a horse arena, groom a driveway, break up manure in a pasture, prepare a seedbed for a food plot, reseed, incorporate chemical/fertilizer, and much more!

The Wingfield 3-point MaxiLift chain harrow is an ideal tool behind a small/mid-sized tractor. The 3pt framework gives the operator full control in using and transporting the harrow. No matter if you are grooming a gravel lot or incorporating fertilizer, the Wingfield 3-point MaxiLift can fulfill your harrowing needs.

Best for…

  • Smaller Tractors, Mid-Sized Tractors

  • Mid-Sized Pastures

  • Riding Arenas

  • Gravel/Dirt driveways

  • Seedbed Preparation

  • Fertilizer/Chemical Incorporation

Key Features:

  • High carbon, drawn spring steel tines

  • Computer bent tines for consistent wear

  • Rings instead of hooks to prevent binding/unhooking

  • Fully encompassing box tube framework is constructed of 2 1/2" beams

  • Front skids act as both stands and protect the pull pipe from objects during use

  • The 3-point Lift is setup for a Cat #1 and #2 tractor and is quick-hitch enabled

  • Harrow mat comes in a single piece mat to eliminate unhooking and providing consistent ground contact

  • Harrow mat is our fullest length harrow (8') which allows the unit to work the ground in a single pass

Specifications:

  • Width: 8' 9" - 12' 0"

  • Length/Depth: 8' 0"

  • Weight: 484 lbs. - 680 lbs.

  • Frame Beams: 2 1/2" x 2 1/2" x 3/16" x 72" or 96" front beam, 2 1/2" x 2 1/2" x 1/8" x 72" or 96" rear beam

  • Frame Verticals: 1" x 2 1/2" x 1/8" x 72" beams

  • Hitch: Cat #1 and Cat #2, quick-hitch ready

  • Drawbar: 86" - 124" wide - 1 1/4" Schedule 80 drawbar pipe (front and rear)

  • Optional Chain/Clevis: 10' - 12' long - 5/16" high-test chain, clevis accepts a 1/2" pin

  • Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine

  • Number of tines: 126 - 174

  • Points of contact: 252 - 348

Available Sizes:

  • 8’ 0” Wide x 5’ 0” Long - Model S3PT80

  • 8’ 9” Wide x 5’ 0” Long - Model S3PT89

  • 9’ 6” Wide x 5’ 0” Long - Model S3PT96

  • 10’ 4” Wide x 5’ 0” Long - Model S3PT104
