3pt Standard Harrows

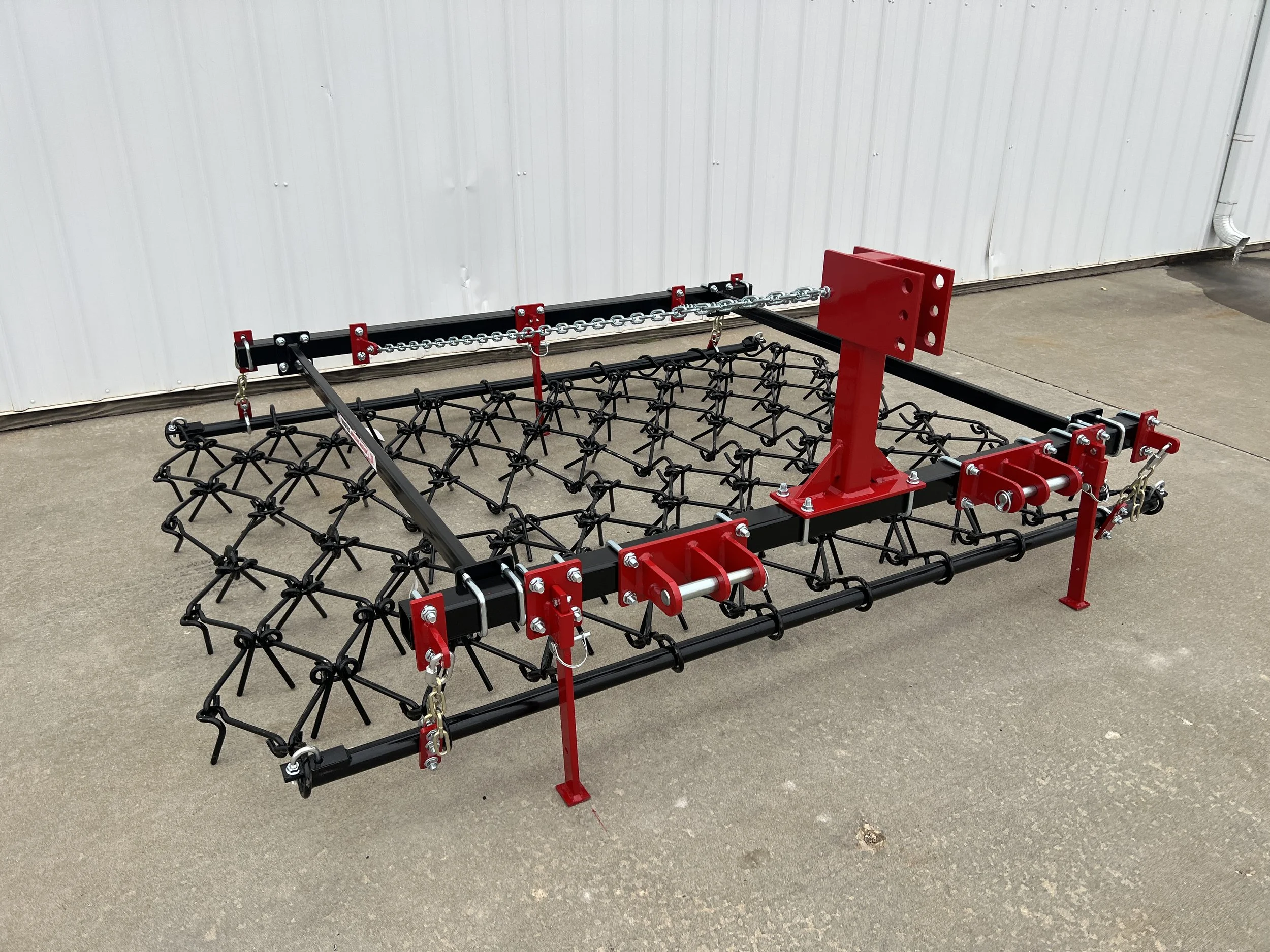

The Wingfield 3-point Standard chain harrow is available in 8' 0" - 10' 4" widths and utilizes a fully-encompassing, box-tube frame to offer total control over the harrow. With the three-point frame, you can back into corners, shake out loose material, control the number/pressure of the tines on the ground, and easily transport the harrow. You can quickly change the harrow aggressiveness with no tools. Plus, the unit is quick-hitch enabled as standard equipment.
The 3-point Standard is a tremendous tool for landscapers to prepare the ground for seeding, work in seed, incorporate fertilizer, thatch, aerate, and level a yard. This unit is so popular with landscapers because it can quickly change tine aggressiveness, break down to fit in the bed of a pickup with no tools, and can be picked up for easy transport and backing into corners. With the 5' length, you are able to get around through tight spaces and around trees easily, but still have a unit that can do the job of a larger piece of equipment. This landscape drag is able to be pulled by either a Cat #1 or #2 tractor, and is quick-hitch ready. A landscaper needs a tool that can do many jobs on the site and is built to last. With the Wingfield American 3-point Standard chain harrow, you have a unit that achieves that and more!
Best for…
Compact Tractors and Smaller Tractors
Small Pastures
Riding Arenas
Gravel/Dirt driveways
Seeding Lawns
Food Plots
Key Features:
High carbon, drawn spring steel tines
Computer bent tines for consistent wear
Rings instead of hooks to prevent binding/unhooking
Strong box-tube framework encompasses the entire harrow
Multiple tine-aggressiveness positions
The 3-point Lift is setup for a Cat #1 and #2 tractor and is quick-hitch enabled
Harrow mat aggressiveness can be quickly and easily changed with no tools required
Can be broken down into 3 pieces with no tools required and fit in the bed of a pickup truck
Specifications:
Width: 8' 0" - 10' 4"
Length/Depth: 5' 0"
Weight: 386 lbs. - 458 lbs.
Frame Beams: 2 1/2" x 2 1/2" x 3/16" x 72" or 96" front beam, 2 1/2" x 2 1/2" x 1/8" x 72" or 96" rear beam
Frame Verticals: 1” x 2” x 1/8” x 60” Vertical support beam
Hitch: Cat #1 and Cat #2, quick-hitch ready
Drawbar: 86" - 115" wide - 1 1/4" Schedule 80 drawbar pipe (front and rear)
Optional Chain/Clevis: 8' long - 5/0 high-test chain, clevis accepts a 1/2" pin
Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine
Number of tines: 78 - 100
Points of contact: 156 - 200
Available Sizes:
8’ 0” Wide x 5’ 0” Long - Model S3PT80
8’ 9” Wide x 5’ 0” Long - Model S3PT89
9’ 6” Wide x 5’ 0” Long - Model S3PT96
10’ 4” Wide x 5’ 0” Long - Model S3PT104
