3pt/Skid Steer Contractor Harrows

The Wingfield Contractor Harrow is designed to be extremely versatile and useful on a job site. This harrow does an excellent job leveling ground, filling in ruts, preparing and incorporating for seed, and numerous other tasks.

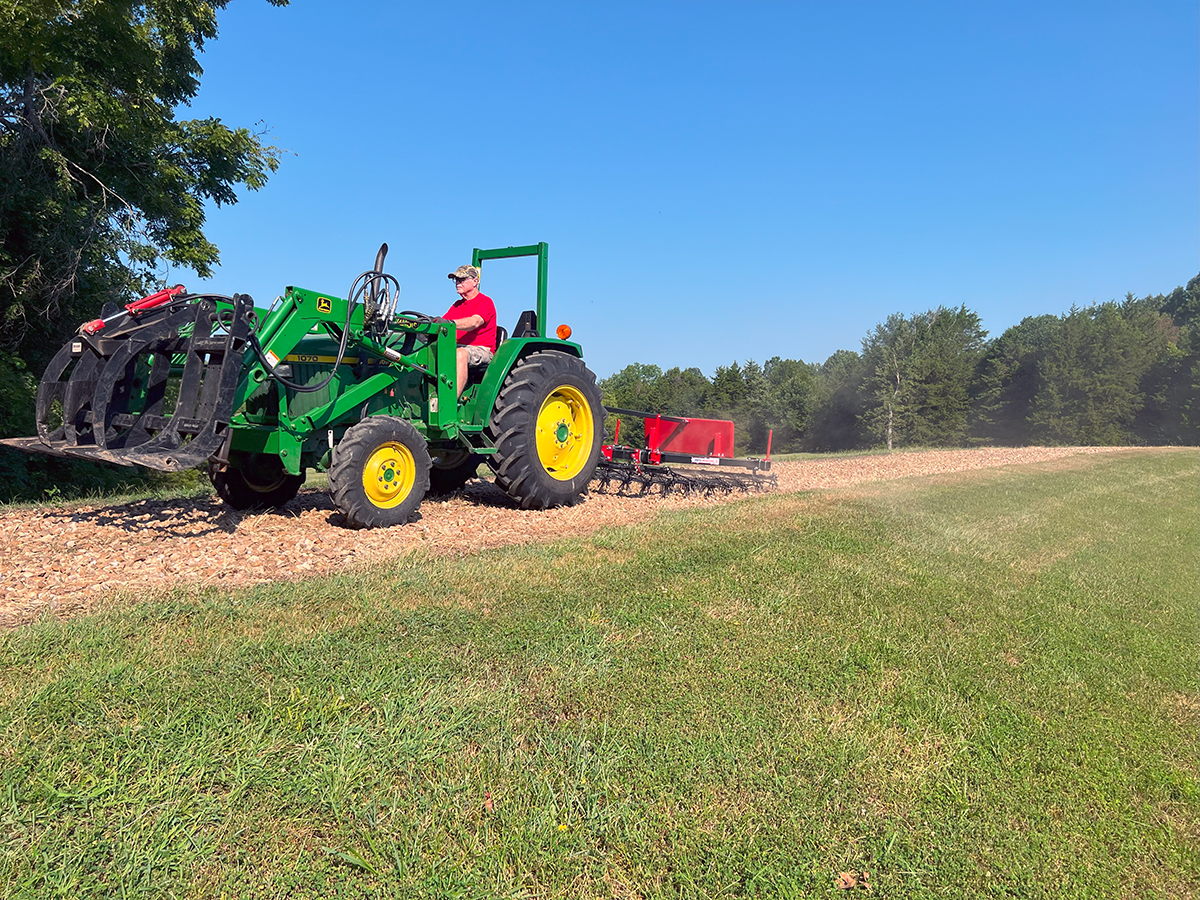

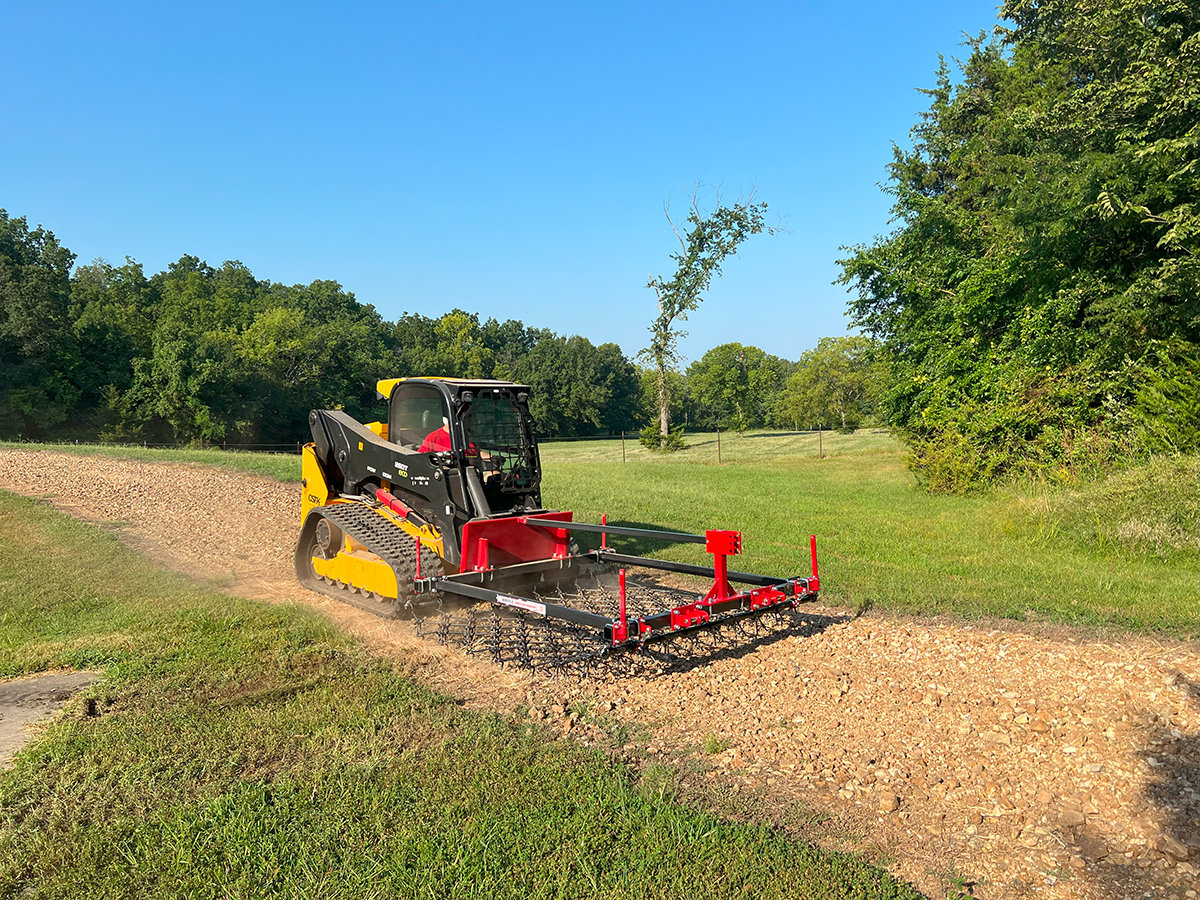

The unit can be attached to both a 3pt tractor (Cat #1-3), as well as a skid steer (SSQA). The full 8' depth of harrow connects to the frame with heavy-duty chains to allow you to either push or pull the unit with whatever tine angle aggressiveness preferred. The unit has a heavy-duty framework and is designed to hold up in rough conditions.

Best for…

  • Mid-Sized Tractors, Larger Tractors

  • Larger Pastures

  • Ground Clearing

  • Gravel/Dirt driveways

  • Seedbed Preparation

  • Fertilizer/Chemical Incorporation

Key Features:

  • High carbon, drawn spring steel tines

  • Computer bent tines for consistent wear

  • Rings instead of hooks to prevent binding/unhooking

  • Fully encompassing, heavy-duty box tube framework is constructed of 3" x 3/16” tubing

  • Available in three sizes: 8' 0", 10' 4", and 12' 0" widths, ensuring a perfect fit for various tasks.

  • The 3-point Lift is setup for a Cat #1, #2, and #3 tractor and is quick-hitch enabled

  • The Skid steer attachment is a standard skid steer back plate (SSQA)

  • Harrow mat comes in a single piece mat to eliminate unhooking and providing consistent ground contact

  • Harrow mat is our fullest length harrow (8') which allows the unit to work the ground in a single pass

  • Versatile connectivity, compatible with both skid steer (SSQA) and 3pt tractor hitches (Cat #1-3), and is quick-hitch ready.

Specifications:

  • Width: 8' 0", 10' 4", 12' 0"

  • Length/Depth: 8' 0"

  • Weight: 855 lbs. - 970 lbs.

  • Frame Beams: 3" x 3" x 3/16" x 86", 115", or 134" front and rear beam

  • Frame Verticals: 1" x 3" x 3/16" x 84" beams

  • Tractor Hitch: Cat #1, #2, or #3 - quick-hitch ready

  • Skid Steer Hitch: Standard Skid Steer Back Plate (SSQA)

  • Drawbar: 86" - 134" wide - 1 1/4" Schedule 80 drawbar pipe (front and rear)

  • Optional Chain/Clevis: 10' - 12' long - 5/16" high-test chain, clevis accepts a 1/2" pin

  • Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine

  • Number of tines: 114 - 328

  • Points of contact: 228 - 656

Available Sizes:

  • 8’ 0” Wide x 5’ 0” Long - Model S3PT80

  • 8’ 9” Wide x 5’ 0” Long - Model S3PT89

  • 9’ 6” Wide x 5’ 0” Long - Model S3PT96

  • 10’ 4” Wide x 5’ 0” Long - Model S3PT104
