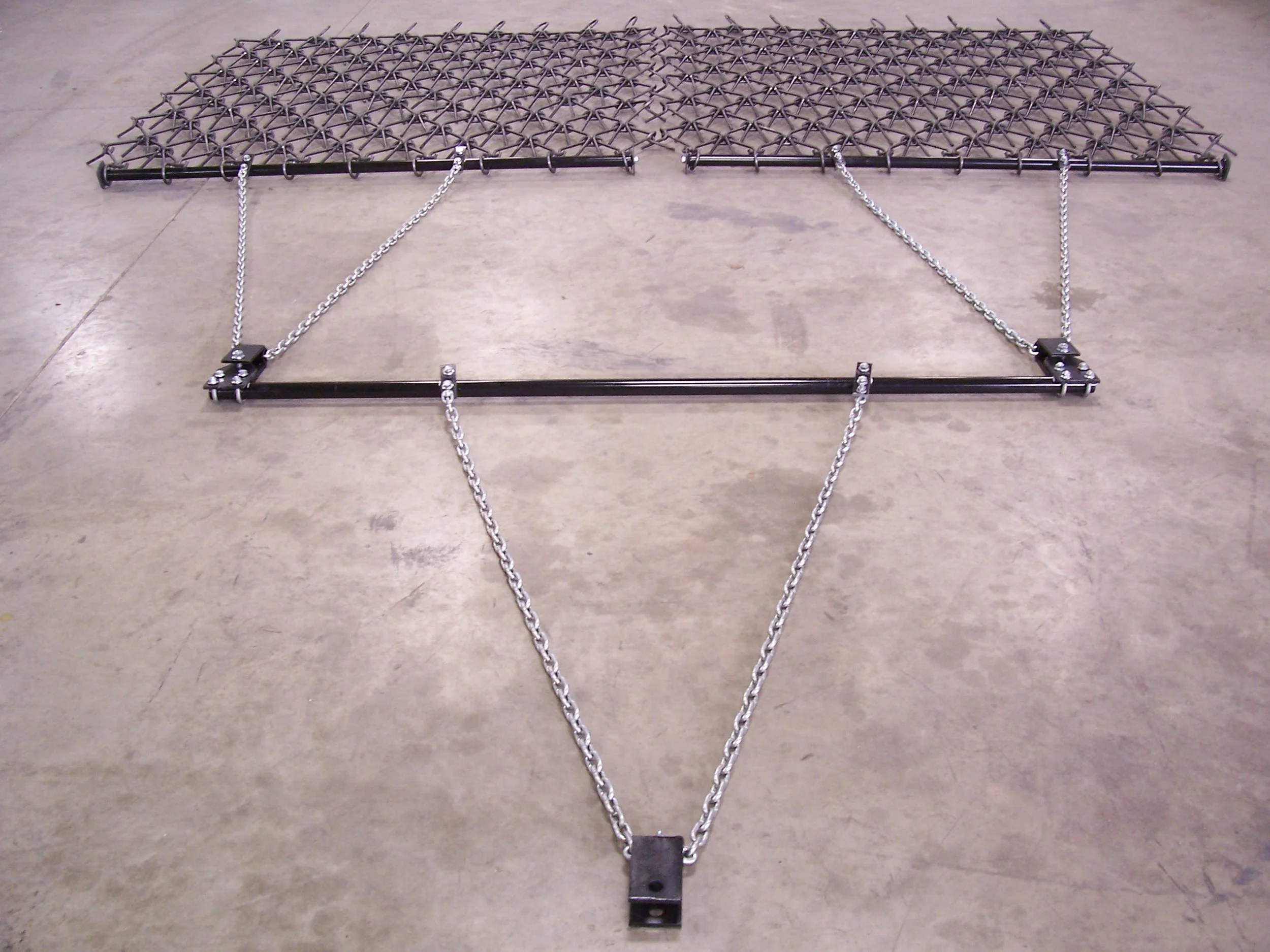

Maxi Drag Harrows

The Maxi Drag Harrow is available in widths from 8' 0" - 24' 0", and utilizes our fullest length (8' 0") of harrow mat. You can start with a drag harrow that is 8', 10', or 12' wide. Then, you can add a second unit, pulled with an evener bar, to double the overall width.


You also have the option of ordering the harrow in single piece or two piece mats. Single piece mats hold to the ground better and can never come unhooked or tangle. Two piece harrow mats are able to better breakdown for transport and offer more flexibility in setting tine aggressiveness (front mat in aggressive setting - rear mat upside down or turned backwards).

This is a popular model for cleaning up after heavy equipment on construction sites. The full depth of the drag harrow does an excellent job in leveling and smoothing deep tracks left by heavy-equipment. The harrow is able to contour to the high and low spots ensuring that you are able to do the most work per pass. Plus, the drag harrow leaves a perfect seedbed that is ready for sowing. The harrow also does a fine job maintaining large gravel or dirt lots where large equipment is being moved and stored.

Best for…

  • Pickup Trucks, Compact Tractors, and Larger Tractors

  • Large Pastures

  • Seedbed Preparation

  • Gravel/Dirt driveways

  • Fertilizer/Chemical Incorporation

  • Feed Lots


Key Features:

  • High carbon, drawn spring steel tines

  • Computer bent tines for consistent wear

  • Rings instead of hooks to prevent binding/unhooking

  • Fully adjustable chain and clevis

  • Multiple tine-aggressiveness positions

  • Optional rear pipe available


Specifications:

  • Width: 8' 0" - 24' 0"

  • Length/Depth: 8' 0"

  • Weight: 292 lbs. - 977 lbs.

  • Clevis: Accepts a 1/2" pin

  • Chain: 10' - 12' long - 5/16" high-test chain

  • Drawbar: 86" - 134" wide - 1 1/4" Schedule 80 drawbar pipe

  • Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine

  • Number of tines: 114 -348

  • Points of contact: 228 -696


Available Sizes:

  • 8’ 0” Wide x 8’ 0” Long - Model D12WH10WRH

  • 10’ 4” Wide x 8’ 0” Long - Model D12WH13WRH

  • 12’ 0” Wide x 8’ 0” Long - Model D12WH15WRH

  • 16’ 0” Wide x 8’ 0” Long - Model D12WH20WRH

  • 20’ 8” Wide x 8’ 0” Long - Model D12WH20WRH

  • 24’ 0” Wide x 8’ 0” Long - Model D12WH20WRH
