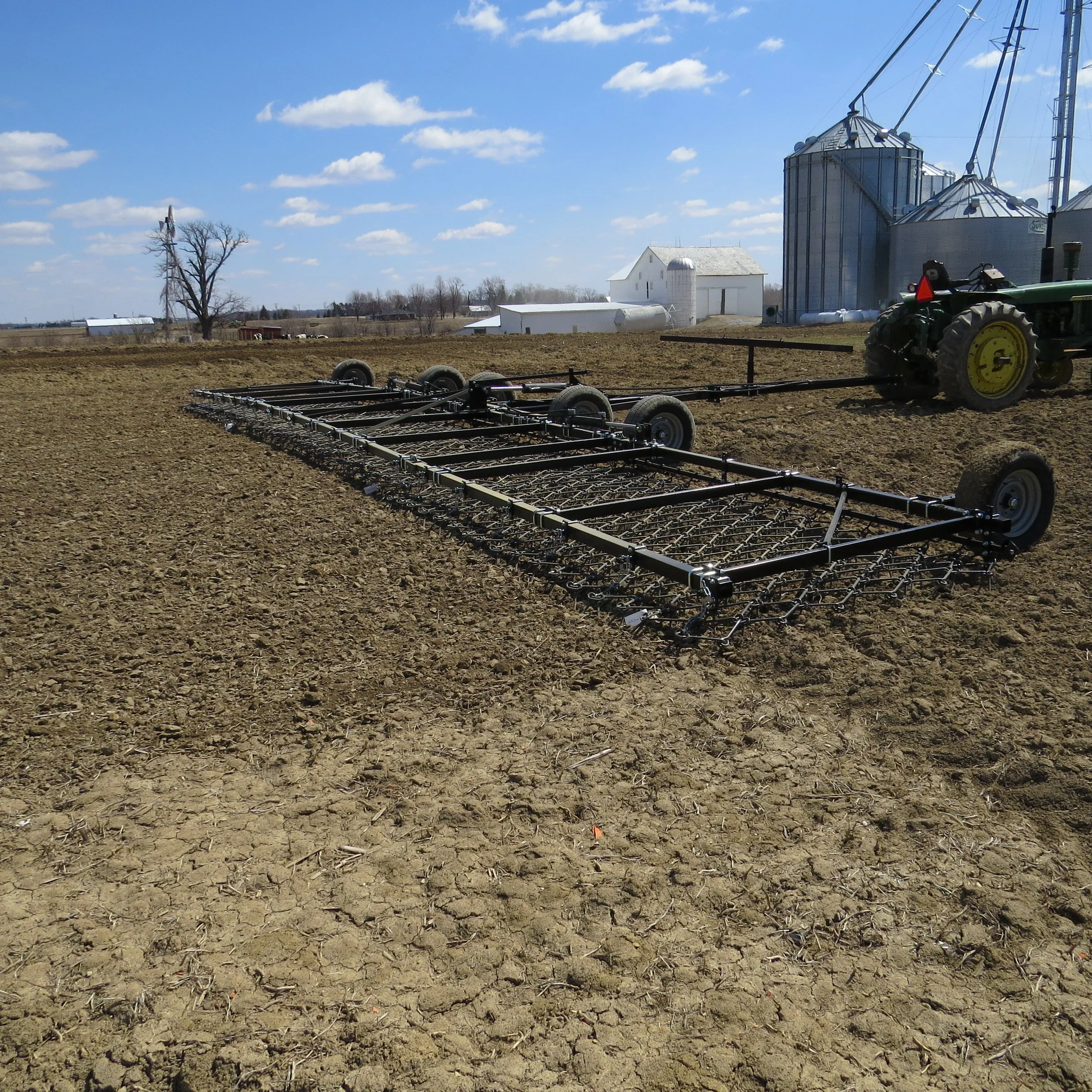

Heavy-Duty American Harrow Cart

The Wingfield Heavy-Duty American Harrow Cart is the largest and strongest harrow cart in the industry. These custom made carts come in sizes from 36' - 50' and provide a high-quality harrow cart for the large operator. The center frames are expandable up to 20' and the wings are expandable up to 14' to provide a cart that fits any need. Hydraulic folding wings come as standard equipment on all of our Heavy-Duty American Harrow Carts.



Our frames encompass the entire harrow section, which gives better control of the harrow in situations where you are in heavy residue.

As an American manufacturer, Wingfield has been a leader in the field in quality and design, while also offering the world's largest selection of models and sizes. We are committed to providing our customers with products that hold up over time and perform consistently throughout the harrows' life. So, you can rest assured that when you by a Wingfield Harrow you are buying nothing but the best!

You won't find a better heavy-duty cart for sale on the market today because of these features:

  • high-carbon, DRAWN, spring-steel harrow tine that can outlast the competition by up to three times!

  • Available in sizes from 36' - 50' in width - 7.5' depth

  • Center frame expandable to 20', wings expandable to 14'

  • Has (6) heavy-duty 6-bolt hubs with 15" truck tires

  • Welded 4" x 16" hydraulic lift cylinder with hoses

  • Hydraulic fold wing cylinders with hoses come as standard equipment

  • 4" x 4" x 1/4' x 20' heavy-duty tongue

  • Custom-made carts can accommodate various transport widths





The versatility of the Wingfield American Harrow Cart is one of it's greatest strengths. You can use it by itself or in tandem behind a plow, cultivator, disc, aerator, etc. Plus, it also frees up your 3pt lift so you can mount a broadcast seeder and throw seed into the harrow - saving a pass through the field! You can use the harrow cart to drag a pasture, thatch, aerate, interseed, incorporate chemicals/fertilizer, prepare a seedbed, weed control, and much more!


Specifications:

  • Width: 36' - 50'

  • Length/Depth: 8' 0"

  • Weight: 3,579 lbs. - 5,700 lbs.

  • Transport width: 11' 6" - 23' 6"

  • Frame Beams: 3" x 3" x 3/16" front beam, 3" x 3" x 1/8" rear beam

  • Frame Verticals: 1/2" x 2 1/2" x 1/8" x 72"

  • Tongue: 4" x 4" x 1/2" that is 16' long

  • Lift cylinder: Welded 4" x 16"

  • Lift cylinder hoses: 1/2" hoses with ISO ends

  • Optional wing cylinder: Welded 3" x 20"

  • Optional wing cylinder hoses: 3/8" hoses with ISO ends

  • Axles: Heavy-duty with 6 bolt hubs

  • Tires: 15" trailer tires

  • Number of axles/tires: 6 (4 on the center frame, 1 on each wing)

  • Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine

  • Number of tines: 492 - 732

  • Points of contact: 984 - 1,464

Optional Equipment:



3" Adjustable height axle   $1,050.00

Rear adjustable pipe         $20.00/ft.

Additional Information
  • Sections come in single piece widths, which provide consistent residue clearance and soil penetration.


  • The point between center section and wing overlaps to eliminate streaking. There is no more need to connect the sections together with cumbersome clamps which can catch and bind.


  • Cart has adjustable axles in both width and height, with heavy-duty 1 3/4" spindle that has 6 bolt trailer wheel and hub. This provides safety during transport, as well as preventing downtime due to a flat lower-quality implement tire in the field. All Heavy-Duty Harrow Carts have 6 wheels standard.


  • Our carts have a positive, no slip, hydraulic lift design with a lockout rod. The heavy-duty 4" x 16" lift cylinder is in the closed position during storage and transport to stop rust on the shaft.


  • The cylinder is fully extended during field operation - allowing the operator to use the hydraulic float system on his tractor in rough conditions.


  • Our carts have a positive, no slip, hydraulic lift design with a lockout rod. The heavy-duty 4" x 16" lift cylinder is in the closed position during storage and transport to stop rust on the shaft.


  • Rear assist wheels are optional on all Heavy-Duty Harrow carts. The adjustable parallel linkage wheels allow the operator to put the cart lift cylinder in a float position which eliminates frame bounce and soil contact.


  • Hydraulic folding wings with hoses come as standard equipment. The hydraulic folding wings are a pair of heavy-duty 3" x 20" hydraulic cylinder with built in restrictors allow wing to float with the terrain.

TO ORDER:

Please call 800.637.6712 or 217.643.7847 (M – F, 9am – 5pm CST) to purchase a Wingfield American Harrow Cart.
